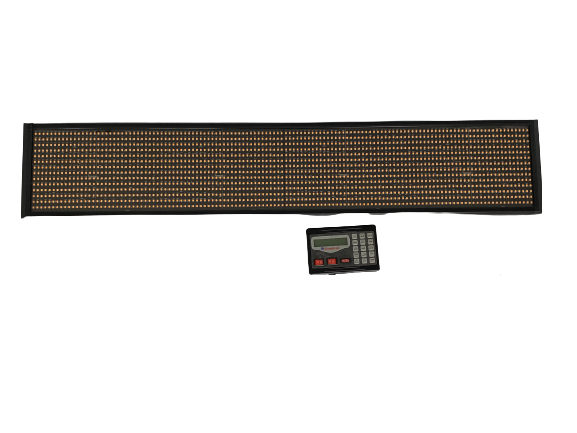

LTF-0109 LED message bar
NEW LED message bar with scrolling display for vehicles,LED message board, LED display screen, LED message lightbar
Etiam efficitur, metus in cursus imperdiet, neque nisl porta erat, nec volutpat felis lacus a tellus. Nunc tristique nulla nisi.
- Description
Description:

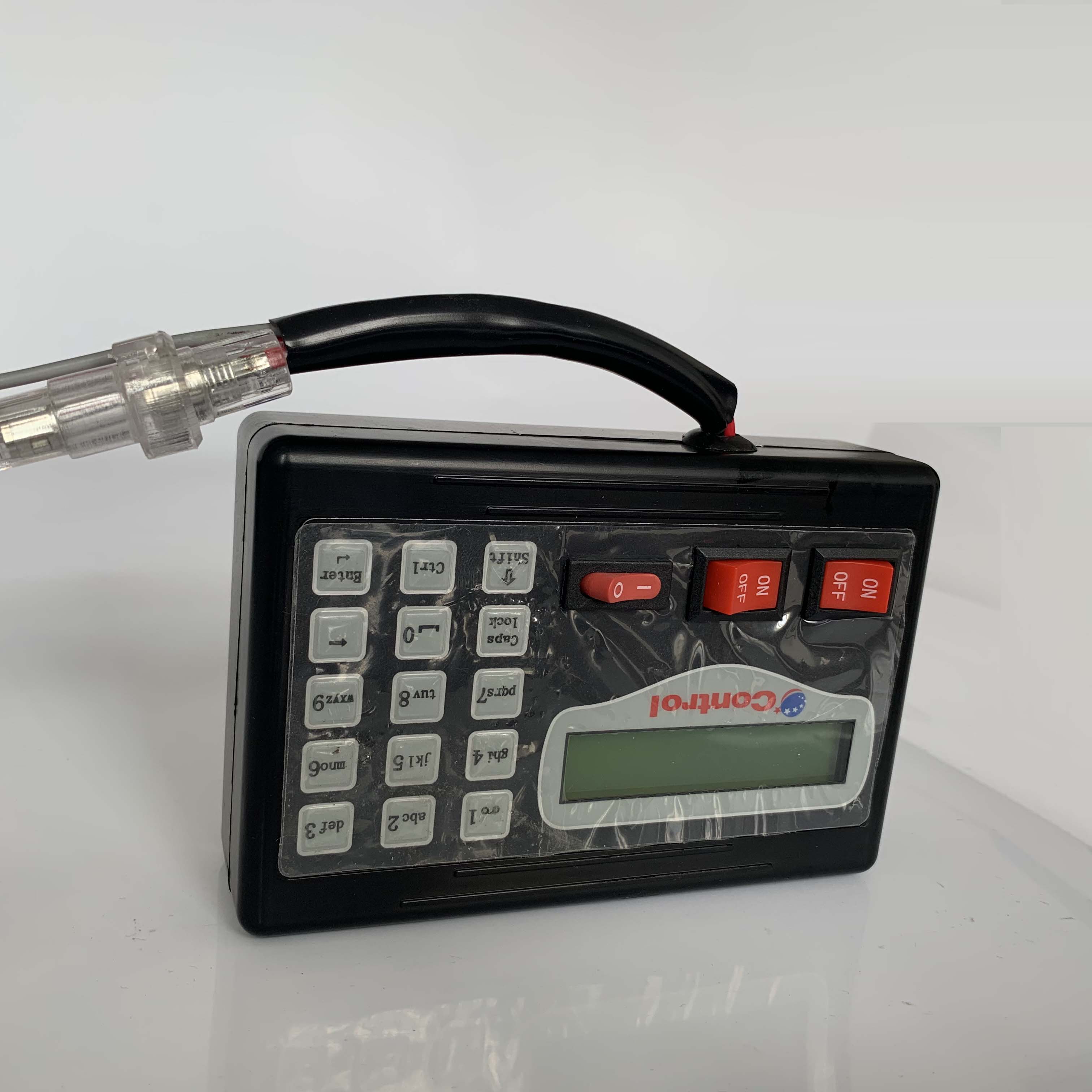

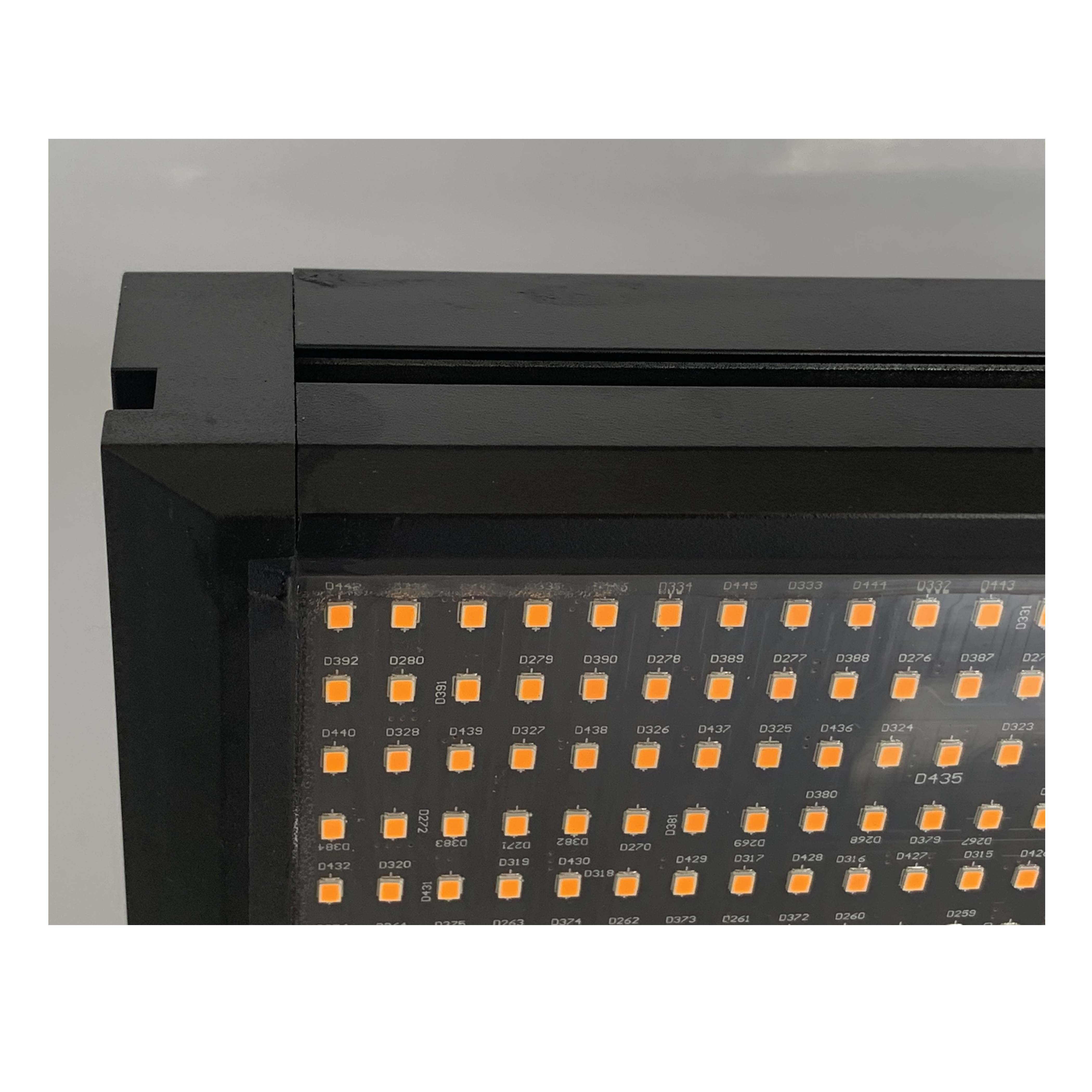

The SMD LED Message bar fit with classic controller, It can be programmable by keyboard and computer, you may edit and adjust the screen freely by software, Service propaganda in finances, post offices, telecom, commerce, hospitals, sports stadiumsPolicies and decrees issued from government organizations ;Instructions, guidance and information issuance in airports and railways;Aluminum housing, Extraoridinary anti-vibrate performance of compact structure;Good water proof and Excellent sealing housing make it can work in the severe weather;Easy operated by the control kit.12 /24 Volt, Size 39" L x 7.3"W x 1.7" H
The Main Capability Parameter
1.1. The rated work voltage: DC12V/24V
1.2. The length of the light: 996mm.
1.3. The environment temperature: -40 ℃~ +50 ℃.
1.4. Waste currant: <2A
Installation and wiring
2.1. Fix the matrix display on the appropriate place

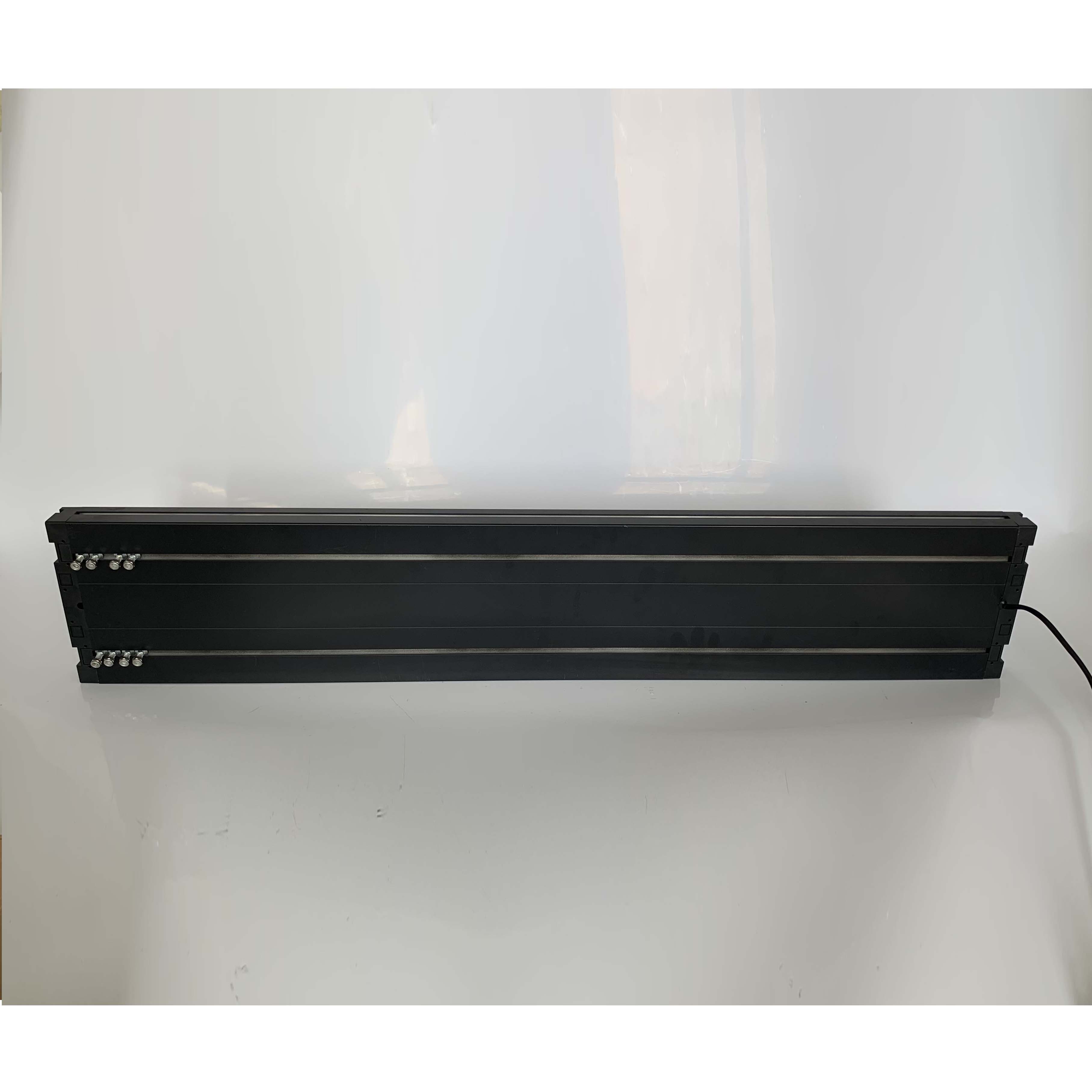

2.2. .Plug the one side of the connect wire to the jack that on the back of the LED display, and tighten the two screws.

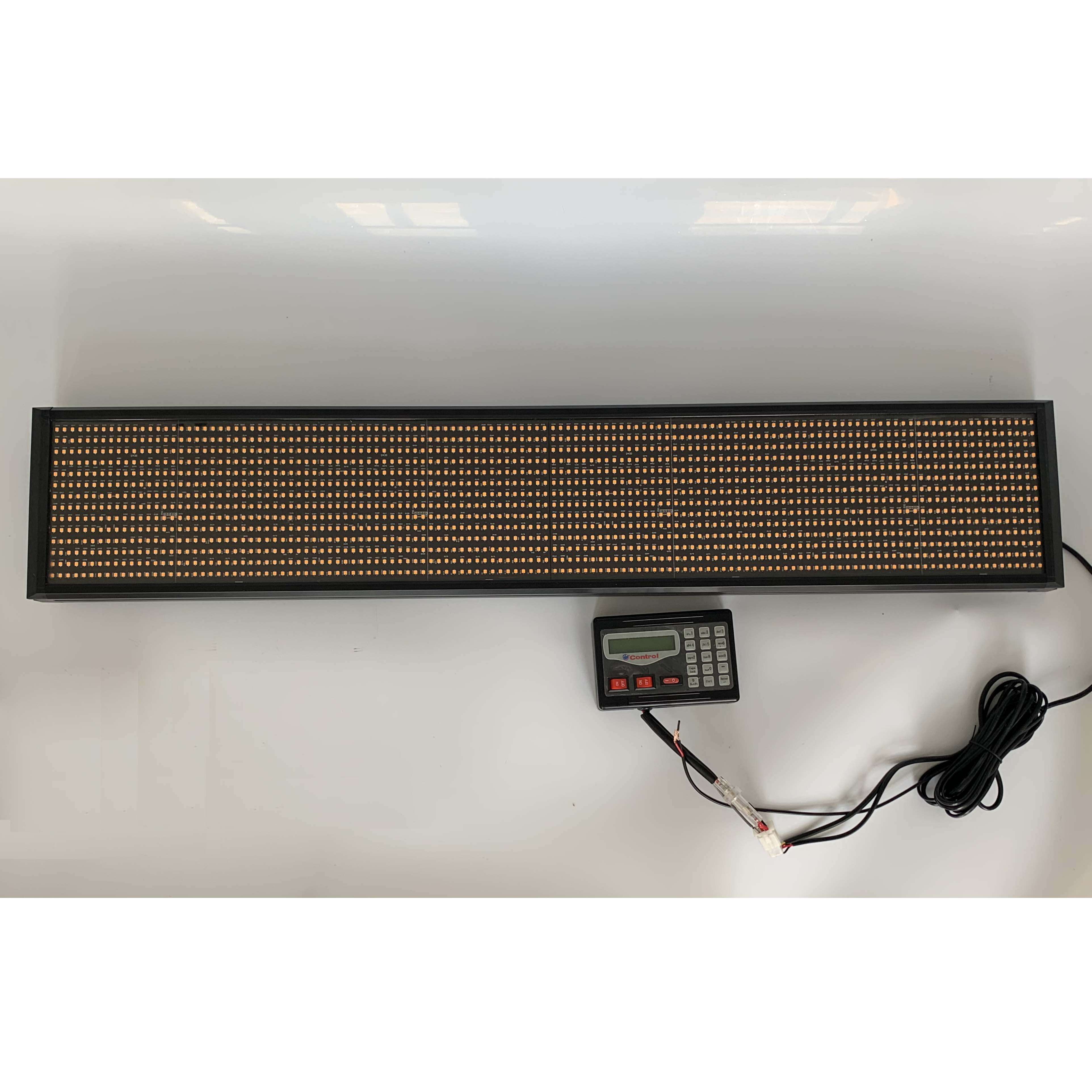

2.3. The another side of the connect wire connect to the controller.
2.4. Connect the power supply wire to the DC12V battery(voltage 24V display must go with DC24V Battery), black wire connect to “－”, red to “＋”
2.5. .After checking, then turn on the power supply switch that on the controller.
2.6. Wiring diagram
